LS Manual Transmission: A Comprehensive Guide

Embark on a journey to transform your LS engine project with a manual transmission! This guide details options,
compatibility, and crucial considerations for a successful swap.

Explore Tremec TKX, T56, and AX15 transmissions, alongside adapters and clutch selection,
to unlock the full potential of your LS-powered vehicle.

The LS engine swap has become incredibly popular, offering a potent and relatively affordable upgrade for a wide range of vehicles. However, many enthusiasts desire the engaging driving experience of a manual transmission. Combining the LS engine’s power with a manual gearbox requires careful planning and component selection.

Traditionally, LS engines were often paired with automatic transmissions, but the aftermarket has exploded with solutions to facilitate manual conversions. This guide will navigate the complexities of LS swaps, focusing on the various manual transmission options available, from the modern Tremec TKX and T56 to the more budget-friendly AX15.

Successfully executing an LS manual swap involves understanding bellhousing compatibility, clutch selection, and the necessary drivetrain components beyond just the transmission itself. We’ll explore these aspects in detail, providing resources and insights to help you achieve a rewarding and reliable result.

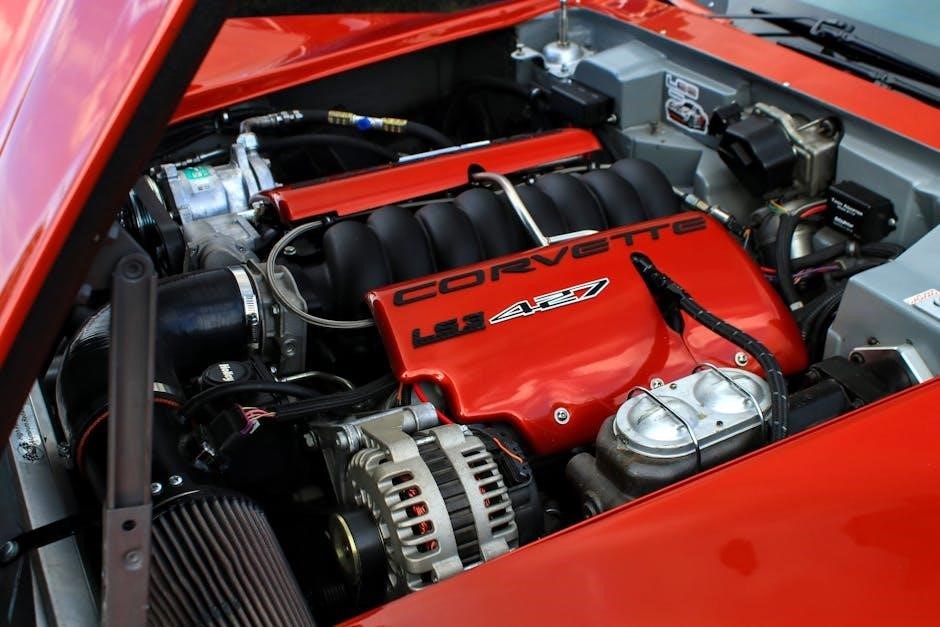

Popular LS Engine Families for Manual Swaps

The LS engine family offers a broad spectrum of options suitable for manual transmission swaps. The 4.8L, 5.3L, and 6.0L LS engines are frequently chosen due to their affordability and readily available parts. The 5.7L LS1 and 6.2L LS3 are also excellent choices, providing increased power output for more demanding applications.

Generally, any LS engine can be adapted to a manual transmission, but certain configurations simplify the process. The 6.0L 2500HD truck engine (99-03) is particularly noted for its compatibility when paired with a specific flywheel, streamlining the conversion.

Consider your power goals and budget when selecting an LS engine. Higher-performance variants may require stronger transmission and clutch components to handle the increased torque. Careful planning ensures a harmonious and reliable powertrain combination.

Transmission Options: Overview

Several manual transmissions are popular choices for LS swaps, each offering unique characteristics; The Tremec TKX is a modern 5-speed known for its smooth operation and available gear ratio options. The venerable T56, available in standard and Magnum versions, provides a robust 6-speed solution for higher horsepower applications.

For budget-conscious builds, the AX15 is a viable option, though its torque capacity is lower. The Corvette ZF 6-speed is also considered, but bellhousing fitment can present challenges. Adapters and conversion kits from companies like Novak Adapt and Bowler Performance simplify the installation process.

Choosing the right transmission depends on your vehicle, power goals, and driving style. Consider factors like gear ratios, strength, and cost when making your decision.

Tremec TKX 5-Speed Transmission

The Tremec TKX represents a modern upgrade for LS swap projects, offering a refined driving experience. Bowler Performance provides complete packages tailored for GM LS engines, simplifying installation. This transmission boasts enhanced durability and precise shifting compared to older designs.

Two primary gear ratio options are available: TCET18083 (3.27/1.98/1.34/1.00/0.72) for aggressive acceleration, and TCET17722 (2.87/1.89/1.28/1.00/0.81) better suited for highway cruising. Selecting the appropriate ratio is crucial for optimizing performance based on your vehicle’s intended use.

Bowler’s packages include everything needed for a complete conversion, making the TKX a convenient and reliable choice.

Tremec TKX Gear Ratio Options (TCET18083)

The TCET18083 gear set within the Tremec TKX transmission is specifically designed for builds prioritizing aggressive acceleration and overall performance. Its ratios – 3.27:1, 1.98:1, 1.34:1, 1.00:1, and 0.72:1 – deliver quick off-the-line responsiveness and strong mid-range power.

This configuration excels in applications where maximizing acceleration is paramount, such as drag racing or spirited street driving. However, it may result in slightly higher engine RPMs at highway speeds. Careful consideration of your vehicle’s intended use is vital when choosing this ratio.

Bowler Performance recommends this option for enthusiasts seeking a truly engaging and performance-oriented driving experience.

Tremec TKX Gear Ratio Options (TCET17722)

The TCET17722 gear set in the Tremec TKX transmission offers a balance between acceleration and highway cruising comfort. Featuring ratios of 2.87:1, 1.89:1, 1.28:1, 1.00:1, and 0.81:1, it provides a versatile driving experience suitable for a wider range of applications.

This configuration is better suited for daily-driven vehicles or those frequently used on the highway, offering lower engine RPMs at cruising speeds while still delivering respectable acceleration. It’s a practical choice for street performance builds.

Bowler Performance suggests this option for drivers prioritizing a blend of performance and usability in their LS-swapped vehicle.

T56 Transmission Options

The T56 transmission remains a popular choice for LS swaps, offering a robust and readily available six-speed manual solution. Several variations exist, each with its own strengths and weaknesses. Sourcing a T56 often involves searching for used units, but careful inspection is crucial to ensure reliability.

Key considerations include the transmission’s origin (F-body, Corvette) and its overall condition. Understanding the differences between the standard T56 and the stronger T56 Magnum is vital for matching the transmission to your engine’s power output.

Proper identification and assessment are essential before committing to a purchase.

T56 vs. T56 Magnum: Key Differences

The T56 Magnum represents a significant upgrade over the original T56, primarily addressing strength and durability concerns. While the standard T56 is suitable for moderate power levels, the Magnum boasts stronger internal components, including upgraded gears and shafts.

This enhanced construction allows the Magnum to reliably handle higher horsepower and torque outputs, making it ideal for more aggressive builds. The Magnum also features a different input shaft spline count, requiring a compatible flywheel.

Ultimately, the choice depends on your engine’s power goals and intended use; the Magnum provides a safety margin for demanding applications.

Sourcing a T56 for an LS Swap

Finding a T56 for your LS swap involves several avenues. Used transmissions are commonly available from salvage yards, online marketplaces like eBay, and dedicated forums such as Grassroots Motorsports. However, condition varies greatly, necessitating careful inspection or a rebuild.

Newer T56 Magnums can be purchased directly from Tremec or through performance retailers, offering reliability but at a higher cost. A resourceful tip suggests utilizing a flywheel from a 99-03 6.0L 2500HD truck alongside a pilot bushing from a 98-02 Camaro/Firebird LS1.

Careful research and due diligence are crucial to securing a suitable T56 for your project.

AX15 Transmission for LS Swaps

The AX15 presents a budget-friendly manual transmission option for LS swaps, particularly appealing for those seeking affordability. However, its torque capacity is a key consideration. Originally paired with the 2.5L engine, it’s often found in Jeep Wrangler TJs.

Rated for approximately 300 horsepower and torque, the AX15 may suffice for mildly modified LS engines, like a stock or lightly upgraded 5.3L. Owners on Jeep Wrangler TJ forums report issues even behind the 2.5L, highlighting potential limitations.

Novak Adapt offers upgraded AX15 versions designed for increased strength and durability, making it a viable choice for more powerful LS builds.

AX15 Torque and Horsepower Ratings

The AX15 transmission, while a cost-effective option, possesses specific torque and horsepower limitations crucial for LS swap consideration. Generally, the AX15 is rated for around 300 lb-ft of torque and 300 horsepower. However, these figures represent conservative estimates and sustained use at these limits can shorten its lifespan.

Jeep Wrangler TJ forum discussions reveal that even behind a relatively low-output 2.5L engine, the AX15 can experience issues. Therefore, careful evaluation of your LS engine’s power output is essential.

For LS engines exceeding these ratings, upgrading to a stronger transmission like the T56 or Tremec TKX is highly recommended to ensure reliability and longevity.

Novak Adapt AX15 Upgrade Options

Novak Adapt offers solutions to enhance the AX15’s durability for LS swaps, addressing its inherent limitations. They provide an improved, stronger version of the AX15 designed to withstand increased torque and horsepower. This upgraded unit features enhanced internal components and robust construction.

These upgrades aim to extend the transmission’s lifespan when paired with a more powerful LS engine. Novak’s knowledge base details these improvements, focusing on bolstering the AX15’s capacity.

While still not as strong as a T56 or TKX, a Novak-modified AX15 can be a viable option for moderate LS builds seeking a budget-friendly manual transmission solution.

Bellhousing Compatibility for LS Swaps

Achieving proper bellhousing alignment is critical for a successful LS manual swap. A common workaround involves utilizing a flywheel designed for a 99-03 6.0L 2500HD truck. This flywheel, costing around $75, facilitates compatibility with various 5-speed transmissions.

Complementing this, a pilot bushing sourced from a 98-02 Camaro or Firebird equipped with an LS1 and T56 (approximately $50 from GM) ensures proper alignment and smooth clutch operation.

This combination provides a cost-effective method for adapting LS engines to a wide range of manual transmissions, simplifying the swap process and minimizing custom fabrication;

Using Flywheels for Compatibility (99-03 6.0L 2500HD)

The 99-03 6.0L 2500HD truck flywheel emerges as a versatile solution for LS manual swap compatibility. Its design allows for use with numerous manual transmissions, bypassing the need for expensive custom fabrication. Costing approximately $75, it represents a budget-friendly approach to adapting your LS engine.

This flywheel effectively bridges the gap between the LS engine’s crankshaft and the chosen transmission’s input shaft. It’s a frequently recommended component within the LS swap community, praised for its ease of implementation and broad applicability.

Properly torqued and aligned, this flywheel ensures a reliable connection, crucial for transmitting power efficiently.

Pilot Bushing Considerations (98-02 Camaro/Firebird LS1)

When pairing an LS engine with a T56 transmission, sourcing a pilot bushing from a 98-02 Camaro or Firebird LS1 is a common practice. These bushings, typically available for around $50 directly from GM, ensure proper alignment between the crankshaft and transmission input shaft.

The correct pilot bushing is vital for smooth clutch engagement and prevents damage to the transmission. It centers the transmission, minimizing vibration and wear. Careful installation is key; ensure a snug fit within the crankshaft.

Verify compatibility with your specific transmission and engine combination before purchase.

Corvette ZF 6-Speed Transmission

The Corvette ZF 6-speed transmission is a highly sought-after upgrade for LS swaps, known for its robust construction and smooth shifting. However, integrating it requires careful planning due to potential bellhousing fitment issues.

Specifically, forum discussions highlight that the bellhousing can be too tight when used with certain flywheels. This can necessitate modifications or the use of a specific flywheel designed for compatibility. Careful measurement and research are crucial.

Despite these challenges, the ZF 6-speed offers a premium driving experience, making it a worthwhile consideration for performance-oriented builds.

ZF 6-Speed Bellhousing Fitment Issues

A primary concern when utilizing the Corvette ZF 6-speed transmission with an LS engine is bellhousing clearance; Forum posts indicate a common issue: the ZF bellhousing can be too restrictive for certain flywheels.

Specifically, users on Grassroots Motorsports have noted incompatibility with some aftermarket or standard flywheels. This tightness can prevent proper installation and potentially cause damage. Addressing this often involves using a specific flywheel designed for the ZF 6-speed setup.

Careful research and precise measurements are essential to avoid these fitment problems, ensuring a successful and reliable LS swap.

Adapters and Conversion Kits

For simplified LS manual swaps, adapters and complete conversion kits are invaluable. Novak Adapt specializes in solutions, offering comprehensive packages tailored to various vehicles and transmission combinations.

Bowler Performance Transmissions also provides vehicle-specific kits, notably for the Tremec TKX 5-speed. These kits typically include the necessary bellhousing, adapter plate, crossmember, and sometimes even a clutch and flywheel.

Using a kit streamlines the process, ensuring compatibility and reducing the need for sourcing individual components. They represent a significant investment but save considerable time and potential headaches during the swap.

Novak Adapt Conversion Kits

Novak Adapt is a leading provider of LS swap conversion kits, renowned for their quality and comprehensive approach. They offer solutions for a wide array of vehicles, including Jeeps, trucks, and various GM platforms.

Their kits often include a custom bellhousing, transmission adapter, crossmember, driveshaft modifications, and all necessary hardware. Novak also provides detailed instructions and technical support, guiding you through the entire process.

Notably, Novak sells upgraded AX15 transmissions, boasting improved strength and durability compared to the factory units. These kits are designed for reliability and performance, making them a popular choice for demanding applications.

Bowler Performance Transmission Packages

Bowler Performance Transmissions specializes in complete packages for LS engine swaps, focusing on the Tremec TKX 5-speed. They offer vehicle-specific solutions, simplifying the installation process for popular platforms like GM trucks and muscle cars.

These packages typically include the Tremec TKX transmission, a bellhousing tailored for LS engines, a clutch kit, a crossmember, and a shifter. Bowler provides options for different TKX gear ratios – TCET18083 for aggressive builds and TCET17722 for highway cruising.

Bowler’s focus is on delivering a modern, robust 5-speed manual experience, enhancing both performance and drivability for your LS-powered vehicle.

Considerations for Clutch Selection

Choosing the right clutch is vital for a successful LS manual swap, matching your engine’s power and intended use. Consider horsepower and torque ratings; a stock LS engine can often utilize a standard street clutch, while modified engines demand upgraded components.

Disc material matters – organic clutches offer smooth engagement for daily driving, while ceramic or metallic discs provide superior grip for high-performance applications. Pressure plate clamping force also influences holding capacity.

Flywheel compatibility is crucial; ensure the clutch disc matches the flywheel’s diameter and bolt pattern. Proper clutch selection prevents slippage, ensures smooth shifting, and maximizes drivetrain efficiency.

Drivetrain Components: Beyond the Transmission

A successful LS swap extends beyond the transmission; consider the entire drivetrain. Driveshafts must be correctly sized and balanced to handle the increased power and different transmission output. Custom driveshafts are often necessary, especially when changing vehicle ride height or rear axle ratios.

The rear end needs to withstand the LS engine’s torque. Inspect and potentially upgrade the rear axle, differential, and gears to prevent failure. Stronger axles and a limited-slip differential enhance traction and performance.

Proper drivetrain angles are critical for minimizing vibrations and maximizing component life. Careful measurement and adjustment are essential for a smooth and reliable setup.

Driveshafts and Rear Ends

Post-transmission, the driveshaft connects engine power to the rear end. A custom driveshaft is frequently required, particularly with ride height changes or differing transmission outputs, ensuring correct length and U-joint angles. Balancing is crucial to minimize vibrations at higher speeds.

The rear end’s strength must match the LS engine’s output. Inspect existing components; upgrades like stronger axles and a limited-slip differential are often necessary. Gear ratios should complement the transmission’s selection for optimal performance – highway cruising versus aggressive acceleration.

Correct angles between the transmission, driveshaft, and rear end are vital for longevity and smooth operation.

Cost Analysis of LS Manual Swap

LS manual swaps vary significantly in cost, ranging from approximately $1,500 to $10,000+, depending on component choices. A budget build utilizing a used T56 can start around $2,000 ー $3,000, including a bellhousing and clutch.

Higher-end options, like a new Tremec TKX or a ZF 6-speed, with conversion kits from Novak or Bowler, easily exceed $5,000 ⏤ $8,000. Don’t forget to factor in ancillary costs: driveshaft modifications, rear end upgrades, flywheel, pilot bushing, and potentially, professional installation.

Careful planning and sourcing used parts can significantly reduce expenses, but prioritize quality and reliability.

Resources and Forums for LS Swap Information

Navigating an LS swap is easier with community support! Grassroots Motorsports Forum offers a wealth of knowledge and project logs from experienced swappers, providing practical advice and troubleshooting tips.

GMT400 Forum is invaluable for those working on 88-98 GM trucks, with dedicated sections for LS swaps and manual transmission conversions. Jeep Wrangler TJ Forum provides specific guidance for Jeep enthusiasts undertaking similar projects.

These online communities are excellent resources for finding answers, sharing experiences, and connecting with fellow enthusiasts. Utilize these platforms to streamline your LS manual swap journey!

Grassroots Motorsports Forum

The Grassroots Motorsports Forum is a vibrant hub for DIY automotive enthusiasts tackling LS swaps and manual transmission conversions. Numerous threads detail complete builds, offering invaluable insights into challenges and solutions.

Users like “njansenv” discuss bellhousing compatibility, specifically noting issues with the C4 Corvette ZF 6-speed transmission and flywheel fitment. “novaderrik” shares a resourceful tip: utilizing a 99-03 6.0L 2500HD truck flywheel and a 98-02 Camaro/Firebird LS1 pilot bushing can simplify compatibility across various Chevy V8s and transmissions.

This forum’s active community fosters a collaborative environment, making it a prime resource for LS swap information and troubleshooting.

GMT400 Forum

The GMT400 Forum, dedicated to 1988-1998 GM trucks, provides a focused space for LS swap discussions, including manual transmission integration. Members frequently share experiences and advice specific to these platforms.

Discussions reveal the possibility of pairing a 3500 or 4500 transmission with an LS engine. While specific details require further investigation, the forum highlights the adaptability of these transmissions for LS-powered GMT400 trucks.

This forum’s strength lies in its platform-specific knowledge, offering targeted solutions for those undertaking LS swaps in older GM trucks. It’s a valuable resource for GMT400 owners seeking manual transmission options.

Jeep Wrangler TJ Forum

The Jeep Wrangler TJ Forum serves as a hub for enthusiasts performing LS swaps into their Jeeps, often involving manual transmission conversions. Discussions center around the AX15 transmission, a common choice for these builds.

Forum members debate the AX15’s suitability, noting its torque rating of 300 HP and TQ. While adequate for moderately powered 5.3L LS engines, concerns arise when paired with more substantial builds. Upgraded AX15 versions from Novak Adapt are frequently recommended for increased strength.

The forum highlights the importance of assessing the existing transmission (AX5 vs. AX15) before undertaking an LS swap, ensuring compatibility and appropriate power handling.
